Discussion Starter · #1 ·
Hey Guys,

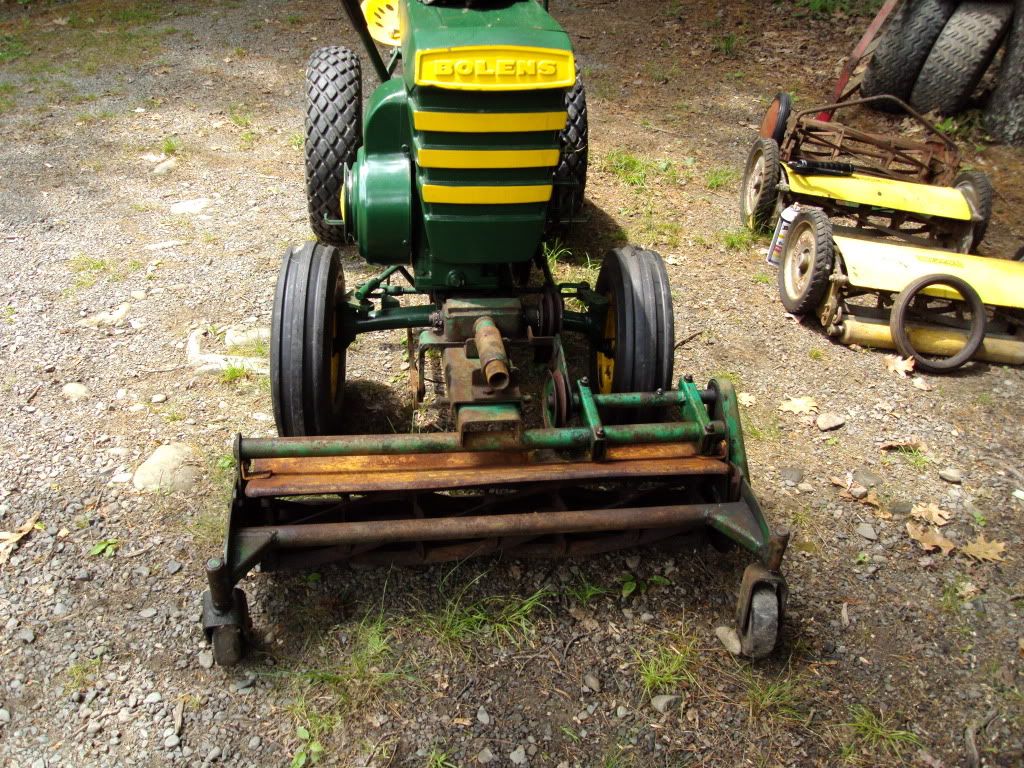

I finally got around to picking up the reel mowers i spoke about months back.

I can't tell if these were originally part of a 3 gang pull behind mower, or if these were the ones that mounted midway to be used with the front mount reel mower. Wondering if any of the Bolens experts can tell me exactly what they are.
Also need to know if anyone has a belt size and how to for the front mount mower.

I may be able to provide more pics if needed. Thanks.







·
RED Wild Hogs, Horses & Deeres
Joined
·
15,608 Posts
Doc., I think your right. They look just like the one's in that photo. Even use the pipe mount on the hitch. I knew you would know what they were.


·
Old, but not dead -- yet!
Joined
·
3,239 Posts
Those Pennsylvania Gang Units with the Bolens name were used as mid-mount reel mowers for Bolens Ride-A-Matic tractors.

They were used in conjunction with either the front-mount (tractor-powered) reel mower attachment as shown in the brochure, or with a third gang unit which was attached and towed from the rear hitch of the tractor.

Bolens #22436-01 2-Gang Mower attachment included 2 reel units & a hitch for mid-mounting them.

Bolens #22437-01 3-Gang Mower attachment included included 3 reel units, a hitch for mid-mounting, and a hitch for rear-mounting.

Those 21" gang mower units were also sold under the Pennsylvania name (without the yellow Bolens covers) as a 3-gang tow-behind set for use with many brands of tractors.

Additional Info added:

Do you know the model of your tractor, and also the front reel mower attachment? ....I suspect you have a model #15401 (24") or #16402 (30") Reel Mower Attachment which is connected to the tractor with a #22734 Hitch Assembly.

Owner's Manual & Parts List for the #15401 & #16402 is posted at:
http://gardentractortalk.com/forums/files/file/2410-bolens-reel-mower-15401-01-16402-01/
These two reel mower attachments were actually used on later models of the 2-wheel tractors, but could be adapted for use on the Ride-A-Matics.

The #22734 Hitch Assy was required when mounting either of these reel mowers to a model 220,230,231,232, 233, or 234 Bolens tractor.

Bolens Ride-A-Matic attachment interchange info is located at:
http://gardentractortalk.com/forums/files/file/2028-ride-a-matic-attachment-interchangeabiity/

I have info on the #22734 Hitch Assy and also the Gang Mower Attachment. ....I will scan & post them ASAP. ....There is a picture of the mid-mount hitch for the Ride-A-Matic there.



·
Member
Joined
·
128 Posts
Discussion Starter · #8 ·
Those Pennsylvania Gang Units with the Bolens name were used as mid-mount reel mowers for Bolens Ride-A-Matic tractors.

They were used in conjunction with either the front-mount (tractor-powered) reel mower attachment as shown in the brochure, or with a third gang unit which was attached and towed from the rear hitch of the tractor.

Bolens #22436-01 2-Gang Mower attachment included 2 reel units & a hitch for mid-mounting them.

Bolens #22437-01 3-Gang Mower attachment included included 3 reel units, a hitch for mid-mounting, and a hitch for rear-mounting.

Those 21" gang mower units were also sold under the Pennsylvania name (without the yellow Bolens covers) as a 3-gang tow-behind set for use with many brands of tractors.

Additional Info added:

Do you know the model of your tractor, and also the front reel mower attachment? ....I suspect you have a model #15401 (24") or #16402 (30") Reel Mower Attachment which is connected to the tractor with a #22734 Hitch Assembly.

Owner's Manual & Parts List for the #15401 & #16402 is posted at:
http://gardentractor...01-01-16402-01/
These two reel mower attachments were actually used on later models of the 2-wheel tractors, but could be adapted for use on the Ride-A-Matics.

The #22734 Hitch Assy was required when mounting either of these reel mowers to a model 220,230,231,232, 233, or 234 Bolens tractor.

Bolens Ride-A-Matic attachment interchange info is located at:
http://gardentractor...erchangeabiity/

I have info on the #22734 Hitch Assy and also the Gang Mower Attachment. ....I will scan & post them ASAP. ....There is a picture of the mid-mount hitch for the Ride-A-Matic there.

Thanks Bruce.

The tractor is a 59 RAM Model 230-01 if I am not mistaken. There is no tag on my front reel mower but it is i believe 30 inches. Unfortunately there are no tags on the 2 reel mowers either.
I will take a look at the links you posted.

Al


·
Member
Joined
·
128 Posts
Discussion Starter · #9 ·
I guess the puzzle is how they mount to the tractor. If you have the info on the gang mower that would be sweet.

Thanks


·
Old, but not dead -- yet!
Joined
·
3,239 Posts
I guess the puzzle is how they mount to the tractor. If you have the info on the gang mower that would be sweet.

Thanks
It is a very simple mounting arrangement, just a round bar that the gangs hitch to, and two brackets which bolt to the sides of the tractor frame.

I didn't have the time to hook-up the scanner and get you the info last night. ....I'll try to get that done later today.


·
Old, but not dead -- yet!
Joined
·
3,239 Posts

·
Old, but not dead -- yet!
Joined
·
3,239 Posts
I did have the hitch you need for your center-mount gang mowers, but I'm not sure if I still have it. ....I will try to look for it and let you know.
Sorry, but no luck on the gang mower hitch bar. ....It probably went to scrap sometime in the past.

That's the way things go -- You can hang onto something for years then decide you'll never use/need it, so you get rid of it. ....Of course, later you find a need for it.


·
Member
Joined
·
128 Posts
Sorry, but no luck on the gang mower hitch bar. ....It probably went to scrap sometime in the past.

That's the way things go -- You can hang onto something for years then decide you'll never use/need it, so you get rid of it. ....Of course, later you find a need for it.
No worries. The manuals were just what I needed. Looks easy enough to make the hitch n brackets. Thanks again.


·
RED Wild Hogs, Horses & Deeres
Joined
·
15,608 Posts
Wanting photos when you get them mounted, very cool find..


·
Old, but not dead -- yet!
Joined
·
3,239 Posts
Bruce, do you remember if the bars on the brackets were tube or solid stock?
Take a look at the pictures in the gang mower info posted at:

http://gardentractortalk.com/forums/files/file/3695-22436-01-22437-01-gang-mower-sets/

It appears tubing is welded to the brackets which attach to the tractor frame. ....Solid round bar is inserted into the tubing, and the gang mowers are attached to the round bar.

Cotter pins & hairpins (and large flat washers) hold the gang units to the round shaft in the proper position.

I can not remember if the solid shaft runs the full length of the tube, or if the solid shafts are short pieces welded into the end of the tubing.
