The T92 transmission was used in all of the steel body Economy and Power kings up until the early 80's when the 4 speed started being used. The T92 is a very rigid and strong transmission: although, after years of shifting the button on the bottom of the shifter becomes worn. When this becomes worn and out of shape it can slide between the shifter rails and jam into gear. This is a very common problem, now that out tractors are getting older. It is actually a fairly straight forward job to repair the shifter; the hardest part of this job is disassembling, and reassembling the transmission cover. Follow along and I will go step by step on how to do this.

Once you have the cover off of the transmission, remove the shifter knob and boot.

AA63AE51-EB17-4CEF-8CEA-90CF8C89EEB2-189


Shift the cover into what would be neutral, and the underside should look like this.

4FE80063-6D8A-4594-8736-3ABAFC595853-189


Turn the cover onto its side, and remove the set screw towards the back.

AE8967BE-AFC7-42A8-B775-9057EA86F8D6-189


Behind the set screw will be a spring, and a small steel ball, turn the cover over and remove them.

7BFB5061-6C6E-4069-A2CA-CE7050ED6C88-189

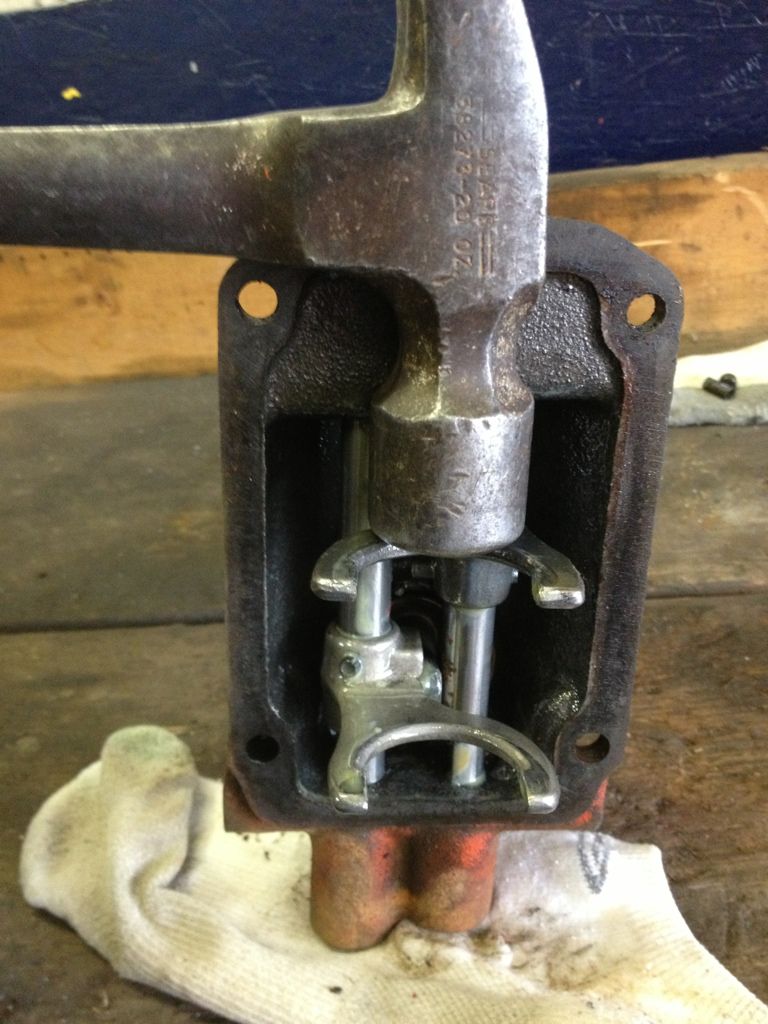

Now stand the cover up, so that the shifter is towards the bottom. Using a hammer TAP on the shifting fork on the right side. Hit the fork as close to the rail as possible, hitting the prong will bend or break it off. Make sure that the end of the shifter lever is moved all the way away from the rail; if the button is in the notch in the rail it will not move far enough.

8CD3E56D-A797-4753-A906-9B87F51B2DAD-189

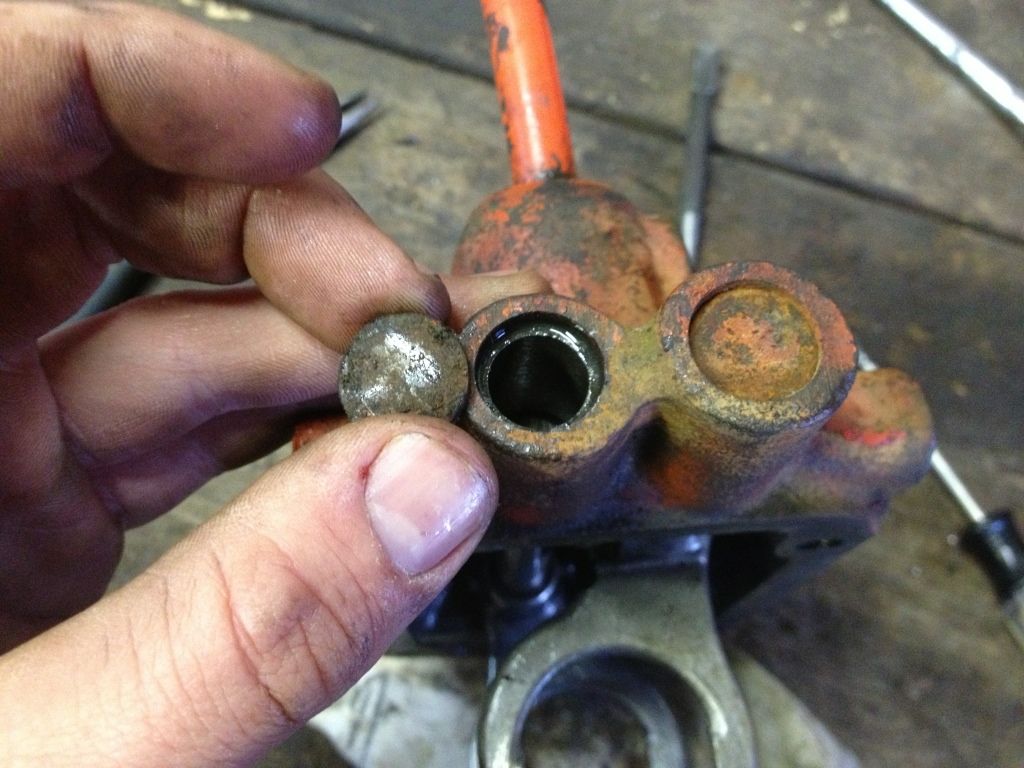

Hitting the fork repeatedly should have knocked the plug out of the end.

FC5F1A33-03AE-45DF-BB51-FDF6D465BF74-189

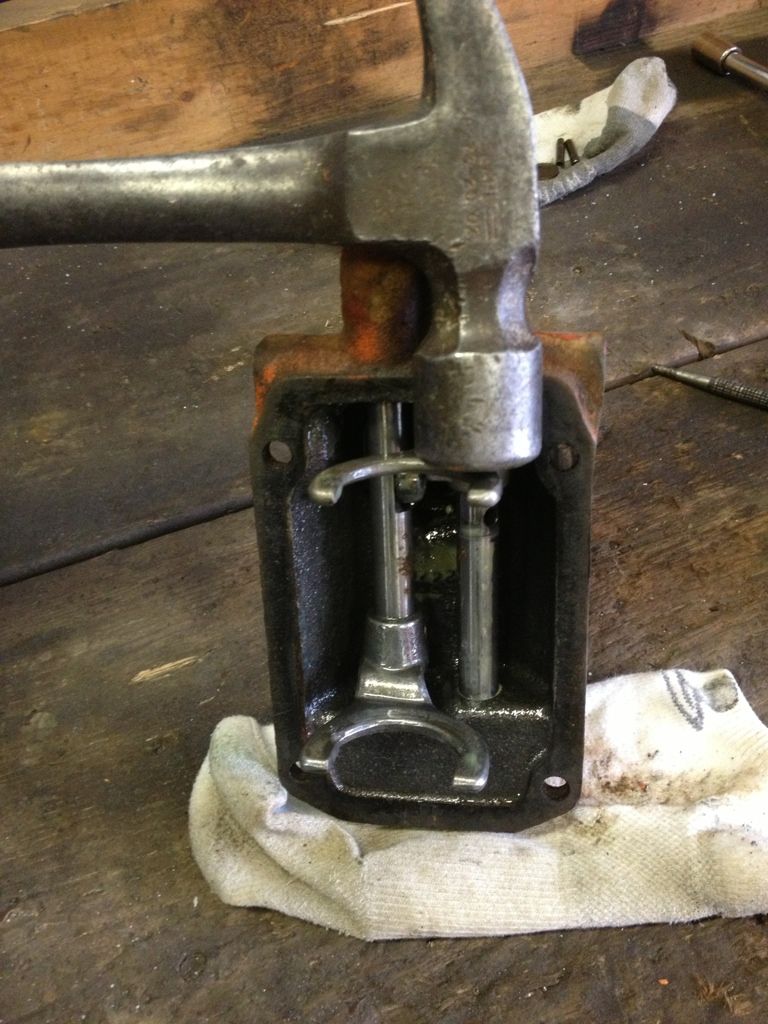

Turn the cover over and do the same with the other side.

AEDF242E-C675-446F-81F6-F8AEDCB331BD-189


Now that plug should have come out.

Sensitive content, not recommended for those under 18 Show Content
11684014-1E56-4E9D-BC13-FD23AEAEEE5C-189

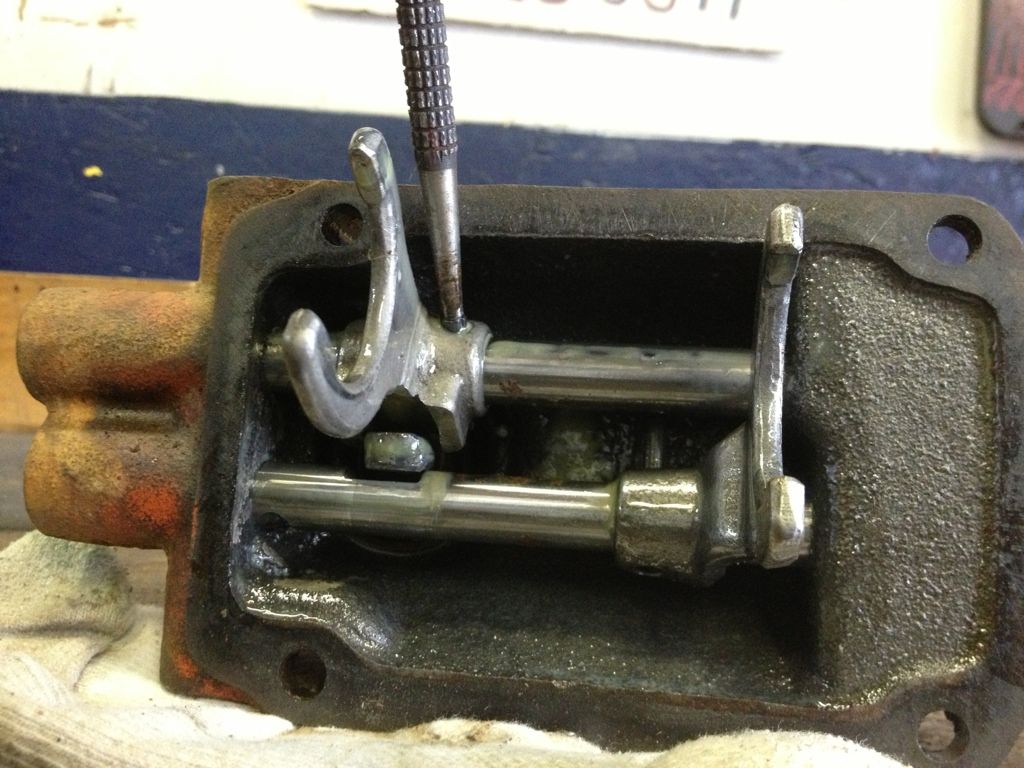

Now, remove the roll pin holding the fork next to the shifter. You may have to rotate the fork and rail so that the pin can go into the opening behind it.

53E70DD6-2261-4357-953B-68C58897ABB6-189

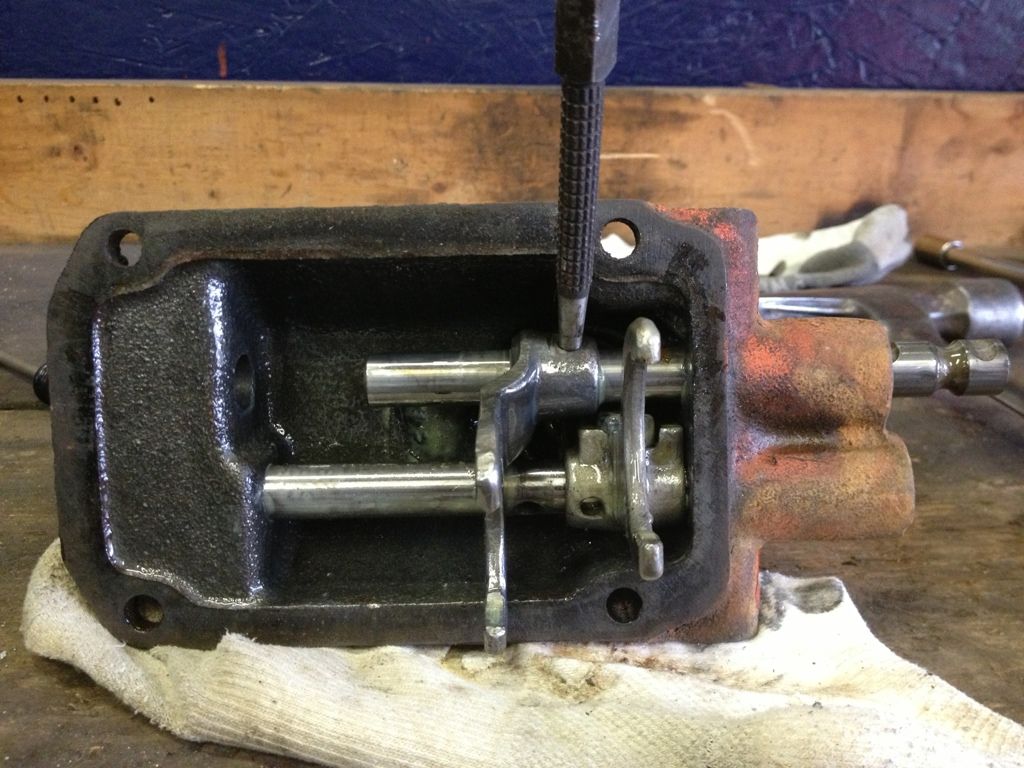

Once the pin is out, shift into what would be reverse. The fork should slide, and the rail should stay in place. You can now slide the other rail as far back as it will go. Again, orient the fork so the roll pin will go into the opening behind it.

8B07F9F4-A1AB-4612-BC54-B43C3D35D774-189


With the roll pin out, remove the fork from the rail.

D6BA956C-DFDE-4744-9A8B-530C498D6B59-189

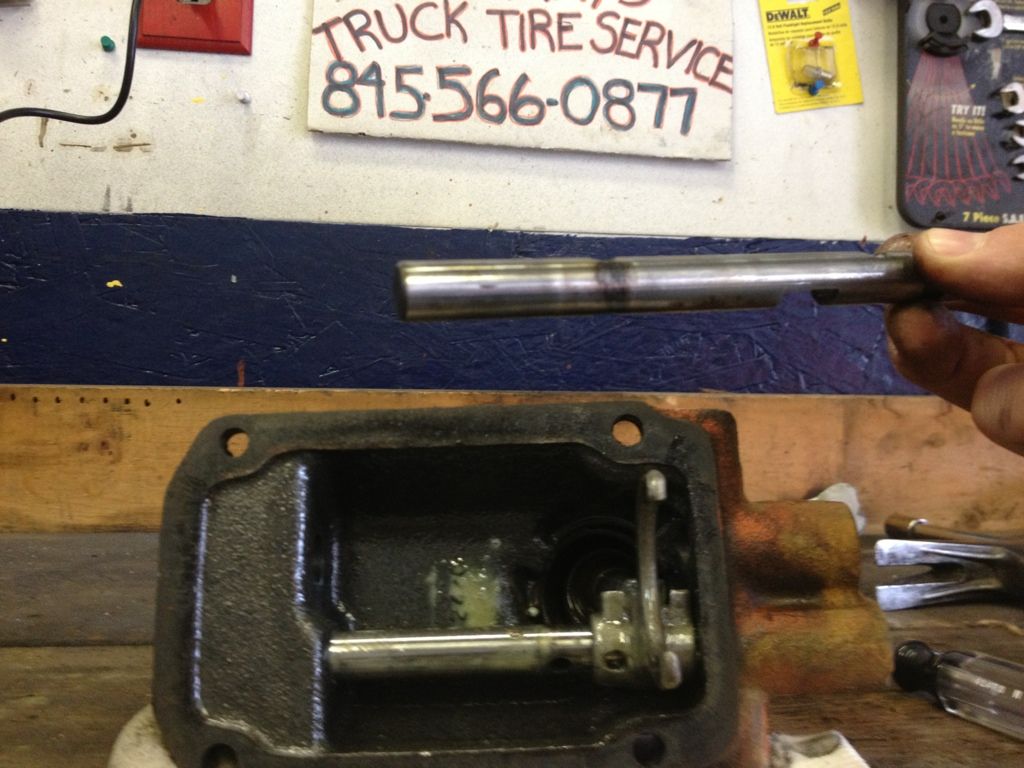

The rail will now slide out of the cover.

78C2D615-B0EA-46F4-A68A-3BCA67625AE2-189


Between the rails, there will be an egg shaped object; this egg prevents the transmission from being shifted into two gears at the same time.

2E14DDBD-2A34-42C0-992C-79026DF2CD6E-189


Now slide the other rail over and take the fork off.

32CF074C-605B-4C5F-8FB4-A7B1A9AED0CA-189

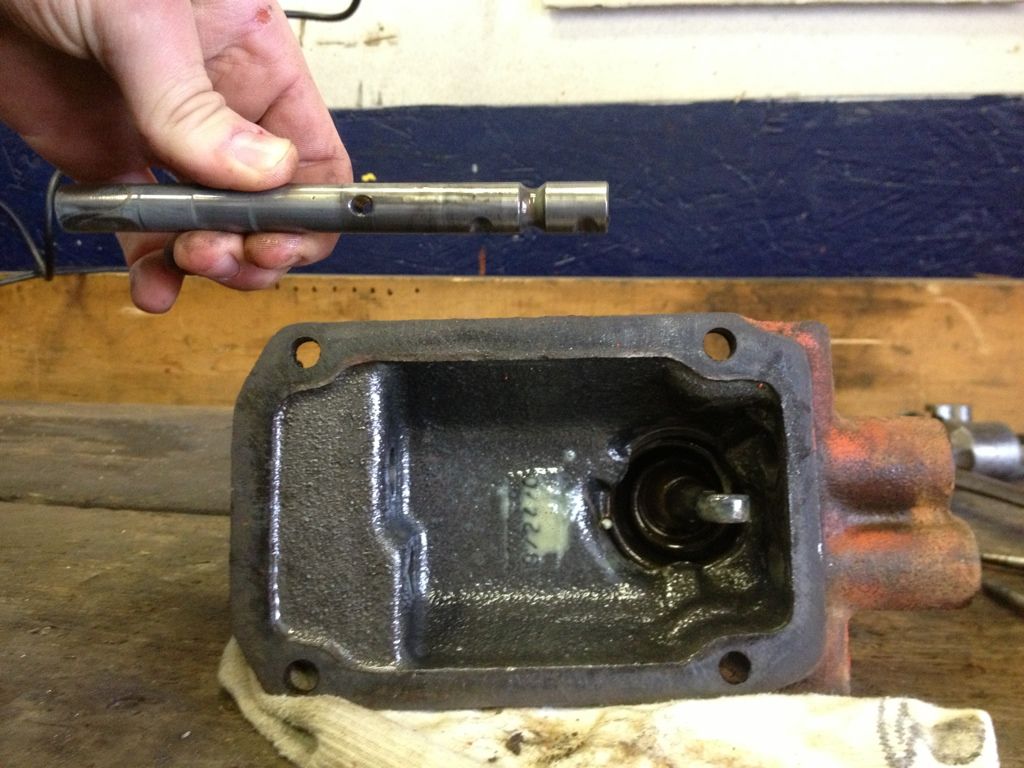

You may now remove the other rail left in the cover.

F872BA97-0B88-4EC5-AF26-9C5C9F7A4E8E-189

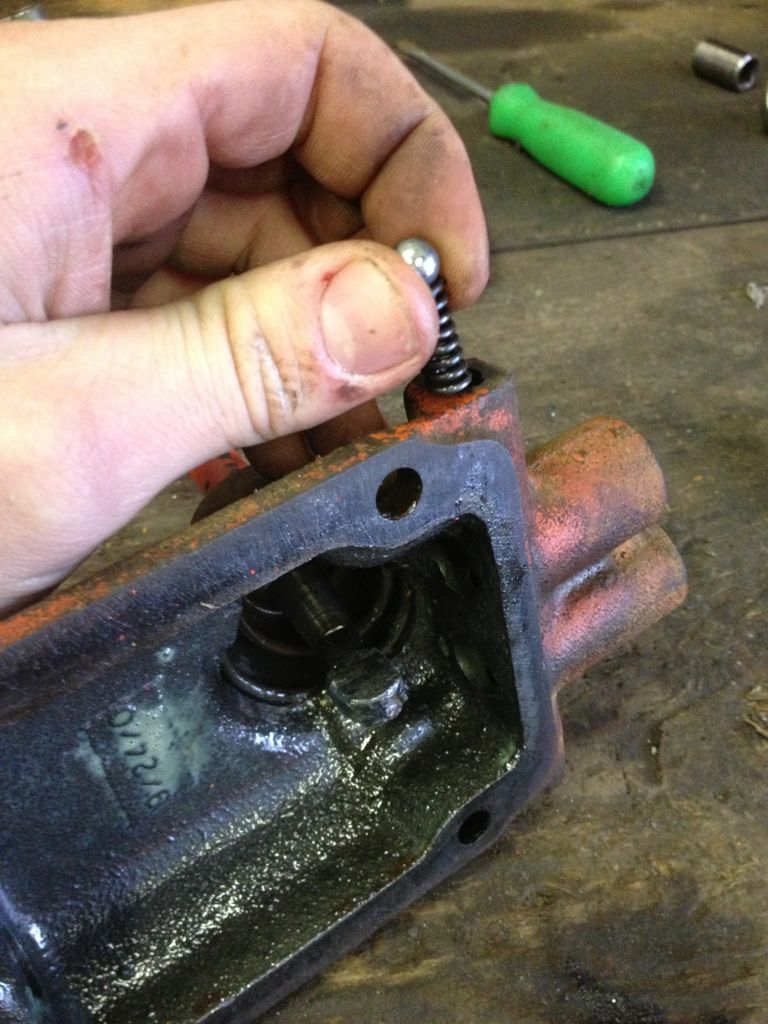

Behind that rail, will be another spring and ball.

3C3D9F14-5292-48C1-938A-449AF6617EFC-189


With a screwdriver, pop the end of the spring over the first of the three teeth.
76CF6ADD-AD55-43C7-879F-E919D7CE9CA8-189


With a pair of needle nose pliers, "unscrew" the spring.

D1DE5A8F-7541-43AB-A30C-93F202952677-189

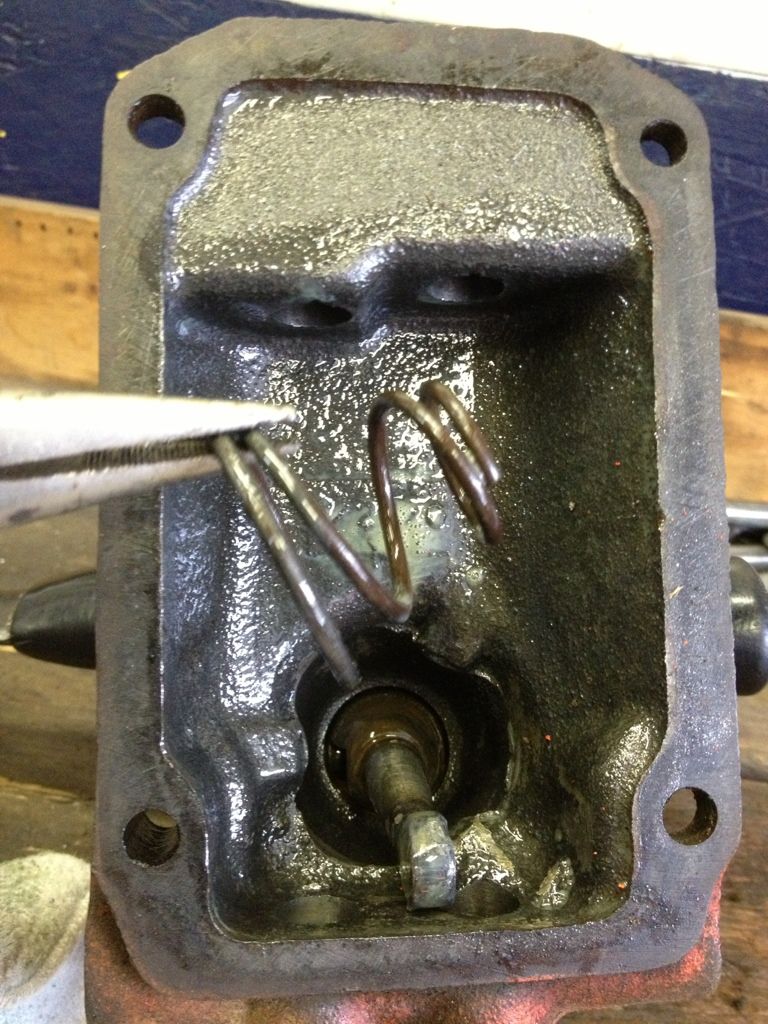

After a few turns, the spring will come out.

DD7E311D-AB3C-4BA4-88F2-873A5698E7B7-189

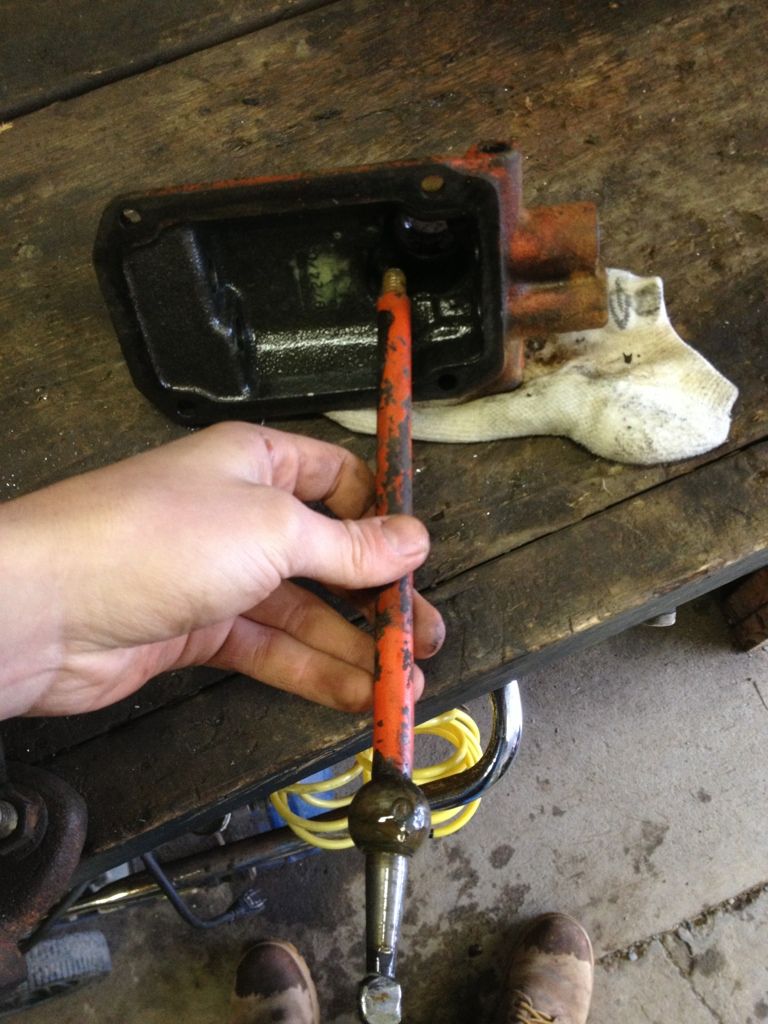

The shifter lever will now slide out of the cover.

43E6CBE2-672D-4929-9499-F13E00793679-189


There is a pin that keeps the shifter from rotating, remove it. Even though the shifter is already out, it will prevent it from being lost when moving the cover around.

F5C3B512-1FE7-4B85-9EEF-1D882D44FF76-189


Using THIS tutorial, you can now rebuild the button on the bottom of the shift lever.

Now that you have repaired the button, you can go backwards to put the cover back together. The first thing you have to do, is put that pin back in.

F5C3B512-1FE7-4B85-9EEF-1D882D44FF76-189


Now put the shift lever back in. One side of the ball that the spring pushes on will have a groove, this goes over the pin that you just put back in.

43E6CBE2-672D-4929-9499-F13E00793679-189

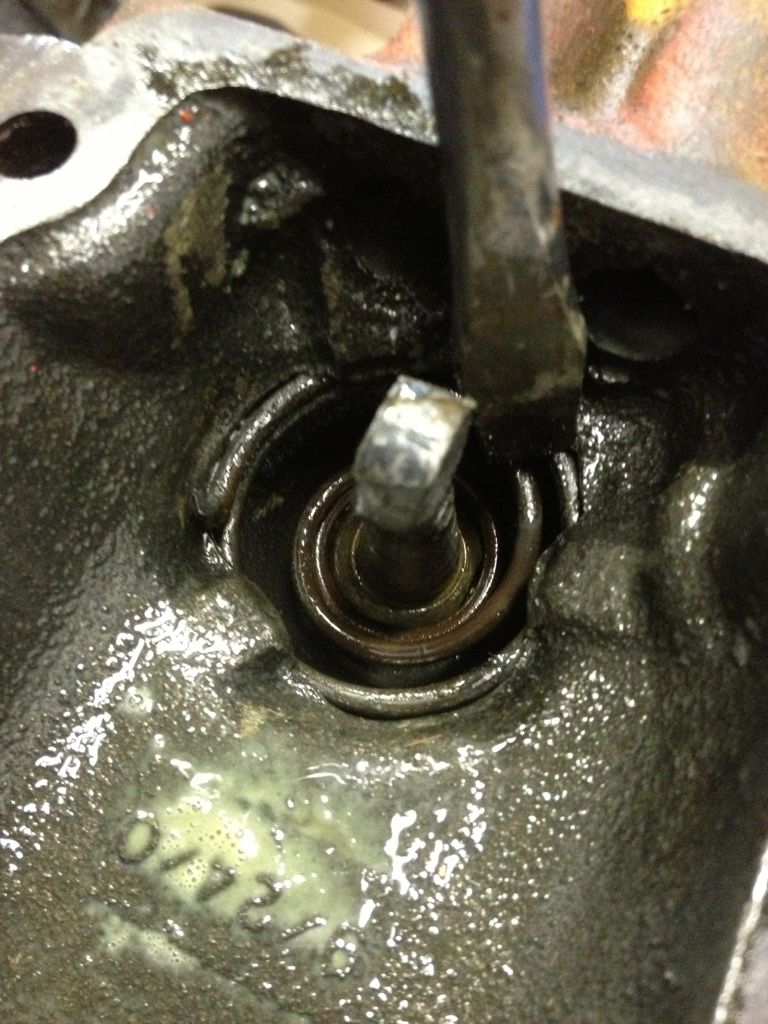

Putting this spring back in, can be tricky; you can not screw it back in like you did to take it out. To put it in, I just work it back in with a screwdriver until it is securely back in place.

BCEA3162-FC1D-45D8-9917-6699277D8E1C-189


Next, put the one of the springs and a ball back in. Holding the cover so that the holes are all vertical, will help the spring and ball fall all the way to the bottom.

3C3D9F14-5292-48C1-938A-449AF6617EFC-189

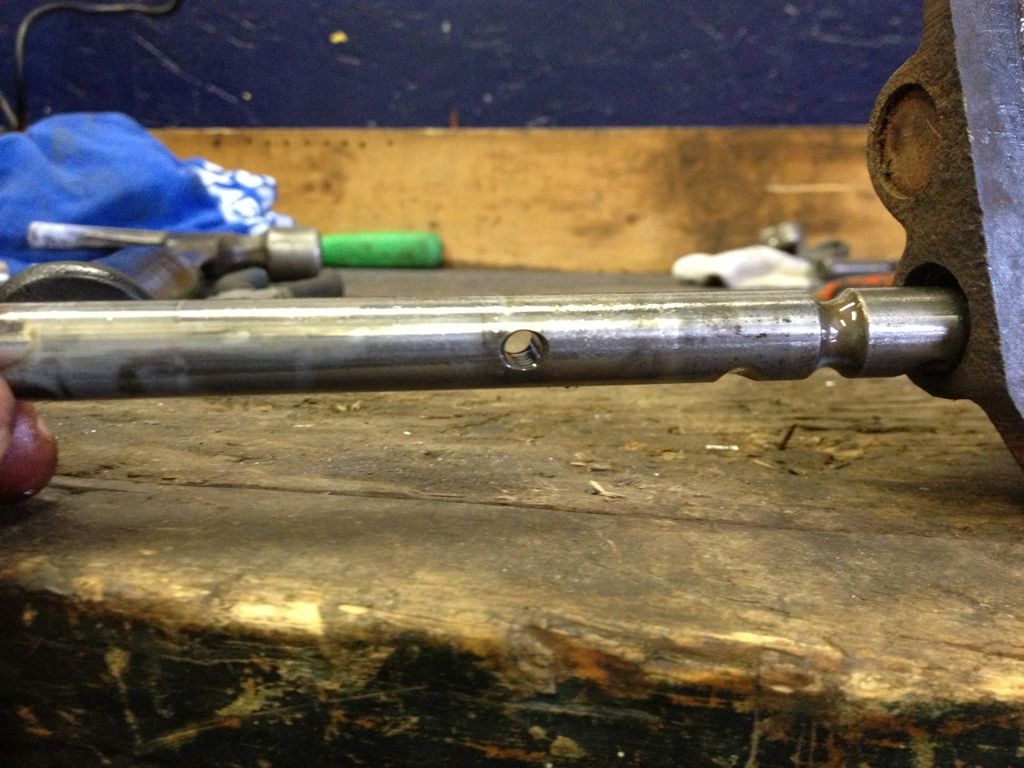

Of the two pins, you can now replace the one that does NOT have the notch in it. When replaced, the two detentes (grooves) towards the back should be facing away from the shifter button.

9DB6999C-5562-4CBD-9850-FFFE5C3174B7-189

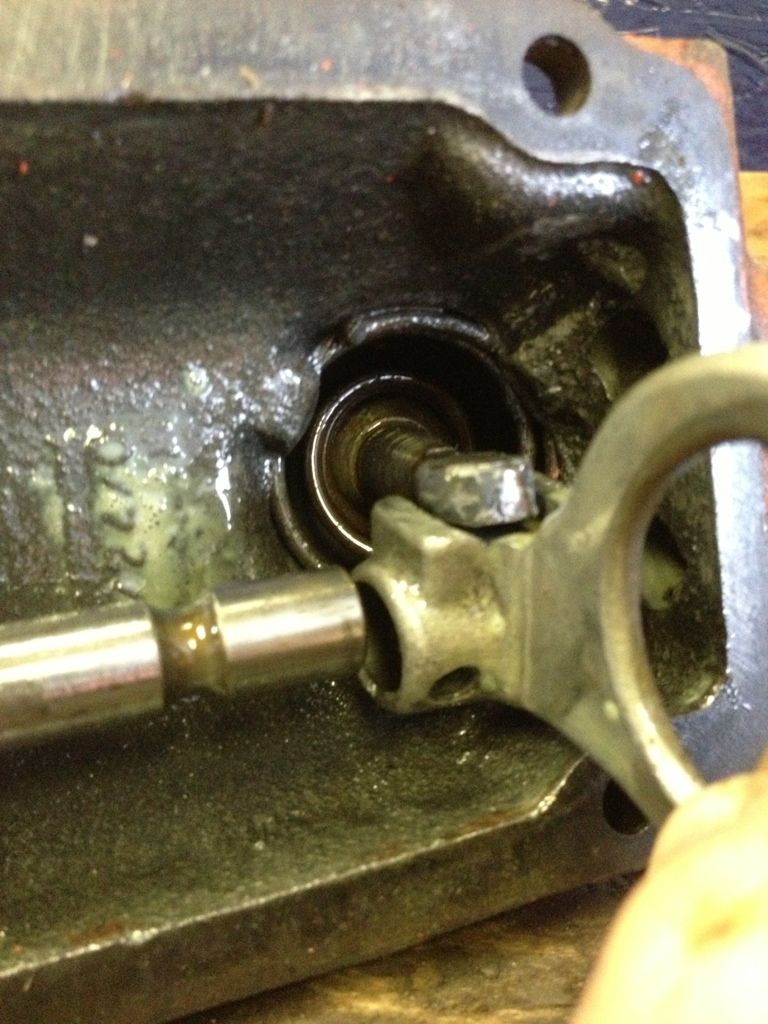

Before the rail is all the way in, slide the fork with the notch in the side onto the rail. The notch should be facing the shifter button.

7A355130-097B-4721-BA38-6C786AF76B80-189

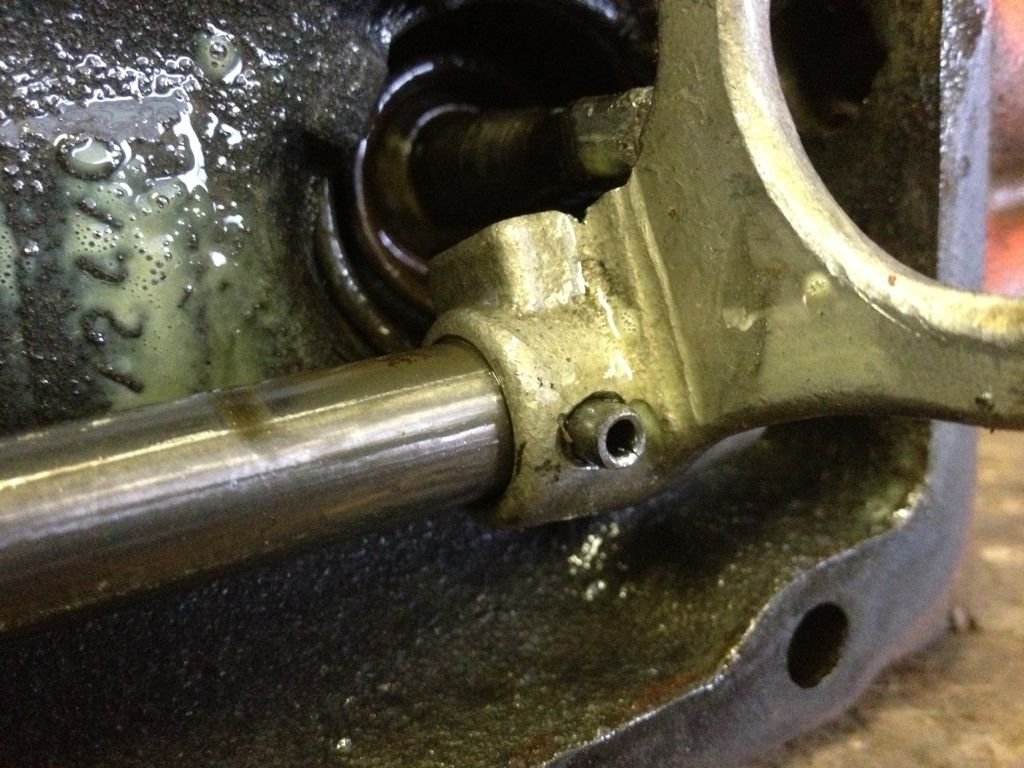

Line up the holes, and put the roll pin back in.

E763169D-29F4-467F-BD89-C1AC2FE5DDBC-189


In the hole that this rail went though, put the plug back in.

Sensitive content, not recommended for those under 18 Show Content
11684014-1E56-4E9D-BC13-FD23AEAEEE5C-189


With the first rail back in, put the egg back in. It will likely take you many tries to get the egg to fall into the hole without tilting as it goes though the opening for the other rail.

2E14DDBD-2A34-42C0-992C-79026DF2CD6E-189


The remaining rail can now be put back in. Orient the rail so that the detentes are facing away from the shifter button.

FACB4B79-A398-4BD9-961F-BBC1FC26D025-189


Before the rail is all the way in, put the other for on. Make sure that it is facing the same direction as it is in the photo below.

200D1955-7077-451F-A305-9F6AE658CC08-189


Again, line up the holes and put the roll pin back in.

ED1D3F13-1DB8-4E80-BF2A-ECA2644AD6DB-189


Put the other plug back into the end.

FC5F1A33-03AE-45DF-BB51-FDF6D465BF74-189


The other spring and steel ball can now be put back into place.

7BFB5061-6C6E-4069-A2CA-CE7050ED6C88-189


Now replace the screw back into the side of the cover. Do NOT tighten the screw, a couple threads past flush is fine for now.

AE8967BE-AFC7-42A8-B775-9057EA86F8D6-189


Finally, put the boot and shifter knob back on.

AA63AE51-EB17-4CEF-8CEA-90CF8C89EEB2-189


Before putting the cover back on, shift into all positions to make sure that it "clicks" into every gear. You may also have to adjust the screw in the side of the cover so that it takes the same amount of force to shift into all of the gears.

NOTE: I did not repair the button when I took this apart. I had already repaired this shifter almost two years ago. Since the weld metal was softer then the original metal, it has worn quite a bit already. (this is the cover from the '71 1614 PK)


·
Super Moderator
Joined
·
14,167 Posts
Very welll done Ryan! :thumbs: I don't own one of those transmissions but if I did I'm pretty sure I could do that repair without any issues given these excellent instructions and photos. I'll pin this so it's easily found in the future.


·
Super Moderator
Joined
·
54,343 Posts
That is a good write up, Ryan. Thanks for taking the time to do it.


·
Red Tractor Nut & Diesel Addict
Joined
·
32,409 Posts
I thought it should be upgraded to an article, but we've had problems when we've done it in the past, so we'll just leave it here pinned for now.


·
Member
Joined
·
912 Posts
This reminds me of the time about 10 yrs ago I was rebuilding NP435 shift covers where I work. I did about 25 a day because UPS would buy them in bulk for their package cars (big brown delivery trucks). Nice job Ryan.

  • Like
Reactions: Ryan313

·
Freedom is not Free. Thank those in uniform for yo
Joined
·
8,677 Posts
Ryan, excellent tutorial. If I had one of those transmissions I believe I could follow it and do the repair very easily. :thumbs:


·
Collector of stuff
Joined
·
1,813 Posts
Great write up and pictures Ryan, :thumbs: I don't have to do that yet on mine but I sure think this would make it a lot easier when/if i have to.

  • Like
Reactions: Ryan313

·
PK Fanatic
Joined
·
5,251 Posts
Discussion Starter · #9 ·
Thanks guys! Depending on the response this got I was going to make it an article also, but if there are problems I will just leave it here.

Great write up and pictures Ryan, :thumbs: I don't have to do that yet on mine but I sure think this would make it a lot easier when/if i have to.
You could just drop it off at my house, and I will gladly do the repair! It will probably take a year or two though.


·
Red Tractor Nut & Diesel Addict
Joined
·
32,409 Posts
Thanks guys! Depending on the response this got I was going to make it an article also, but if there are problems I will just leave it here.
Ryan, you could do it separately as an article, and just leave this thread right here in the PK forum. That's how I did my ongoing V4-6 restoration article so I could avoid it getting messed up by promoting it from a common thread to an article.


·
PK Fanatic
Joined
·
5,251 Posts
Discussion Starter · #12 ·
so when you did this were you bare foot :rolling: you will need some oxy clean to get that sock clean
No, in one picture you can see I put my boots back on. Lol!


·
Registered
Joined
·
9 Posts
Excellent job of writing this up.  The step by step was done nicely and will allow others to repair their own shifters/transmission covers by themselves.  It would be nice if we had this type of step by steps for other repairs. Experts out there..hint hint !


·
Registered
Joined
·
151 Posts
I've done this repair in the past using the "let's see how this comes apart" method. It's great to see it described in detail here. I need to do this repair to another of my PK's very shortly & will refer to this post to speed thing up this time. Thanks !

BTW .. does anyone have the width specs on the shifter ball that we are repairing ? It would be nice to know exactly how wide they are when new ... then we can shoot for this measurement instead of trial & error when welding/grinding.

~Glenn


·
Registered
Joined
·
113 Posts
great instructions and pic's our pk is one we installed a two cylinder wisconsin and a larger warner gear tranny but it looks the same as the T92 I think these instructions would work for we to if I ever need them thanks a lot


·
Registered
Joined
·
2 Posts
I have a 1985 PK 1617 with a similar problem. The transmission is different, but the symptoms are the same. The forks don't show much wear but I did notice that the shift lever seems to have had some welding just above the pivot ball in the shifter housing. The end where the shifter engages the forks is like a flattened ball. the ball is 0.365 in diameter and the ball rounded portion is 0.25 from where it attaches to the shifter to the bottom of the ball.

I just got the tractor and find this puzzling because the ball does not look like it has significant wear, but there is a great deal of "slop" in the shifter lever when it is in the transmission (four speed 03-7505).

Any ideas would be helpful.
